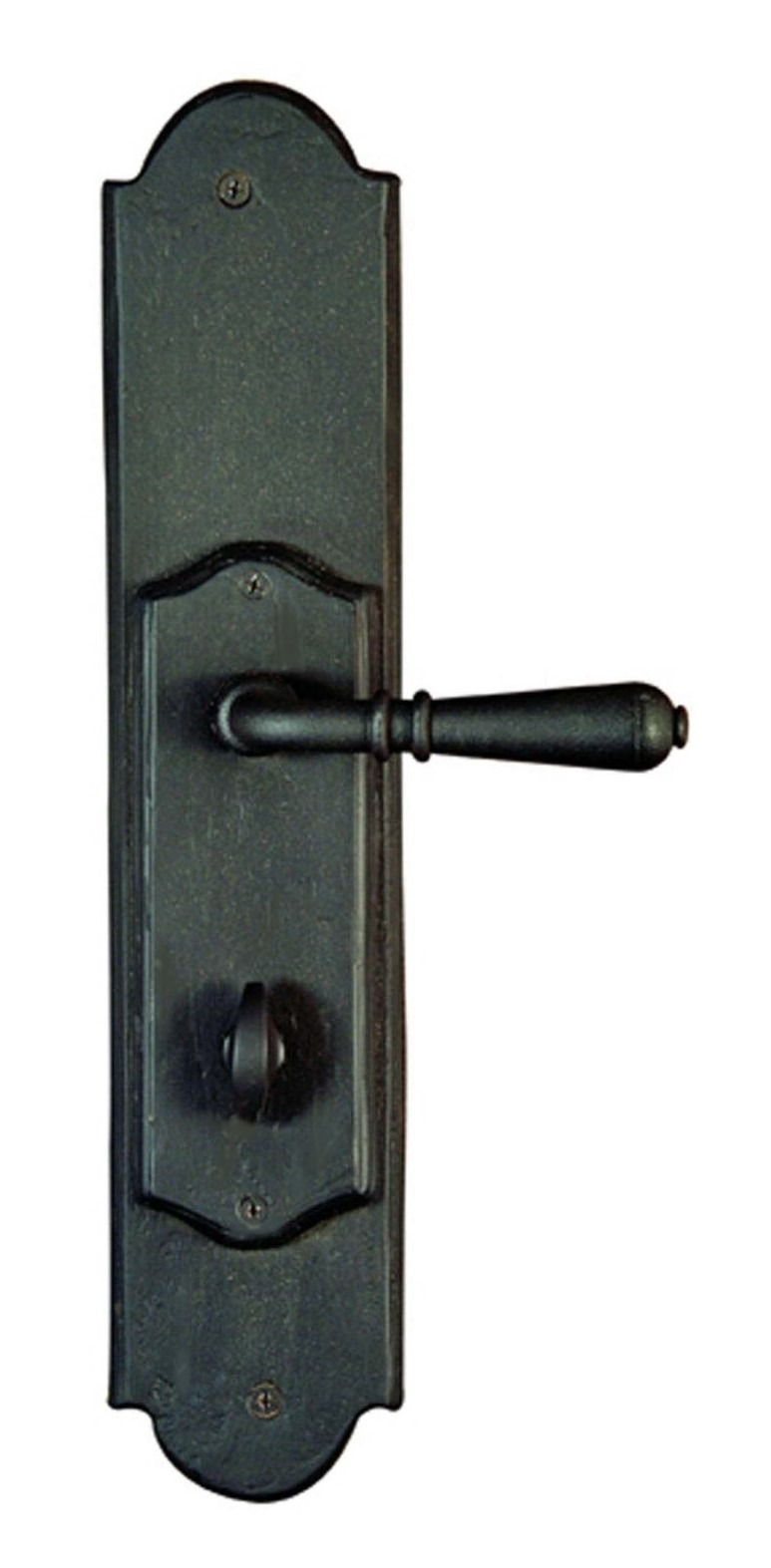

GABLES WROUGHT IRON HANDLE

The Point Locking Mechanism is set inside the rail of the inactive leaf of the door. It is operated by the Handle in the inactive leaf. When this handle is pushed up the locking Mechanism withdraws a stainless steel solid 5/8″ diameter pivot. When the handle is placed horizontally the mechanism engages the locking mechanism with a 3/4″ throw. The system is manufactured in the Bellini metal mechanic shop and has been tested for hurricane resistance for the Bellini Doors and windows.

The system allows for a European cylinder that has a Thumb turn in the interior and a security key bolt in the exterior. The key bolt activates the bolts and also the latch, allowing for the composition of the usage of handles inside and outside or for a pull and a key drum only. Base material: Stainless Steel Finishes: Satin and black Measurements: 7″ x 2″ Function: Entry

Base material: Stainless steel Finish: Satin, black This mechanism is commonly used for passage doors. Medidas: 2-7/8″ x 13/16″ x 5-5/16″

The multi Bolt Locking system is engaged by the Euro security Locking system. The color of High Security Lock is Stainless or black. 5 High Security keys

The European locking system is designed to be engaged by the handles and the European thumb turn and key bolt cylinders. The Bellini handles operate the latch of the mechanism. This is a simple high security mechanism that has been tested and code approved to protect the doors from forced entry or hurricanes.
